Configuring SSO for Sitecore Cloud Portal with Azure AD

So you've made the leap or are about to make the leap to Sitecore SaaS and you want to understand how Single Sign-on (SSO) will work for you using Azure AD/Entra ID? This post is a quick walk through to get you going.

Overview

As of the date of writing this post, Sitecore XMCloud doesn't currently support RBAC for the products within your SaaS Environments however you CAN have Single Sign On (SSO) configured to the Sitecore Cloud Portal itself. In order for users to be able to access the various Cloud Portal resources, you will need to have someone with the Organsation Admin or Admin Sitecore Cloud Portal roles invite users and select their access rights to each tool.

Configuring SAML single sign-on | Sitecore Documentation

In order to enable SSO for the Sitecore Cloud Portal, there’s a simple UI to manage this from the Sitecore Cloud Portal side and currently it will support

• SAML
• OpenID

In our example, we're going to have a look at Sitecore XMC Projects/Environments and Sitecore Personalize (Prod and Non-Prod) and we're going to use SAML

Azure AD Role Groups

As mentioned previously, we're only using SSO to auth to the Sitecore Cloud Portal which means that we only need one AD Group to manage this.

Skills/Personell and Access Required

In order to be able to make this happen, you generally need a couple of specialists from various parts of your business. This is a coming together of two systems which are your orginasational Azure Active Directory/ Entra ID and your Sitecore Cloud Portal so it should be reasonably obvious however you will need:

• Someone who has access to your Azure AD/Entra ID who can provide the relevant Connection values and configure your AD Roles
• An Orgnaisation Owner or Organisation Admin within the Sitecore Cloud Portal. This is often the people noted down on your SaaS licensing agreement or a person they've given access to on their behalf.

Sitecore Cloud Portal Roles

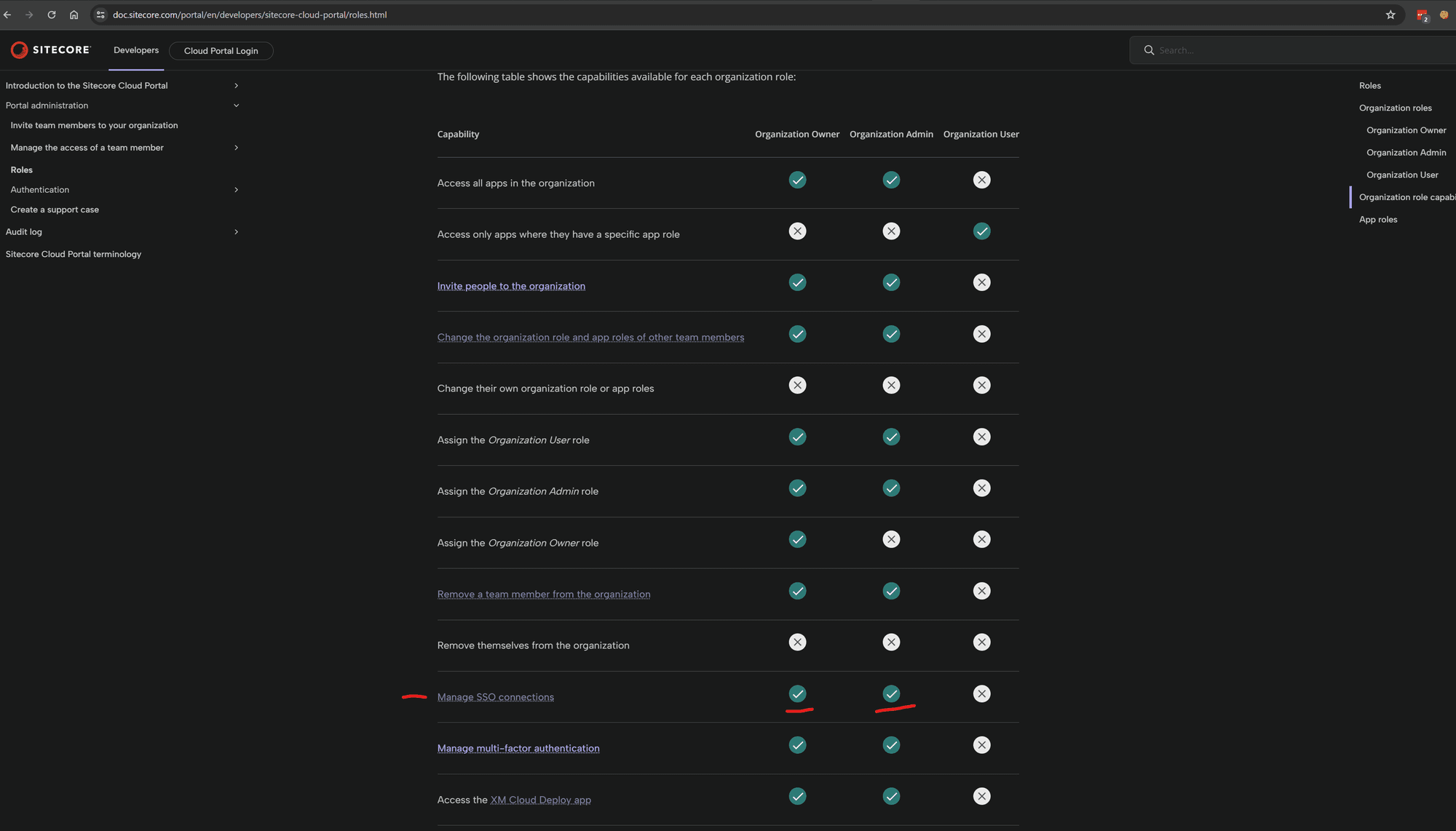

The Doco page references we care about are shared at the bottom of the article however of note before we get started is the detail on this page:

Configuration

It's SaaS. Which means it's UI driven and it's simple. We're populating fields and following the directions as they're given to us.

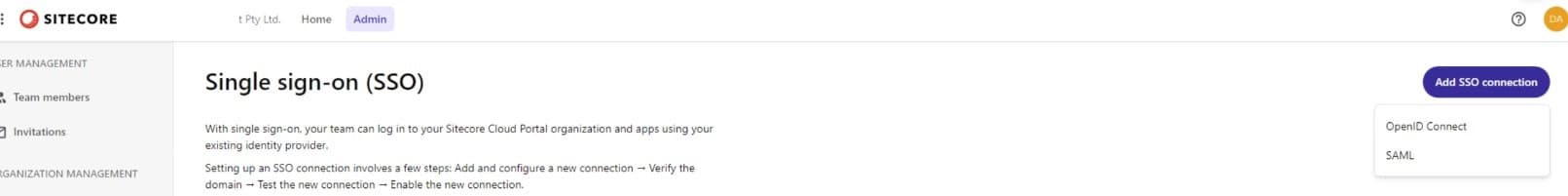

Start by going to the Admin Tab and hitting "Add SSO connection" and we're choosing SAML for our example.

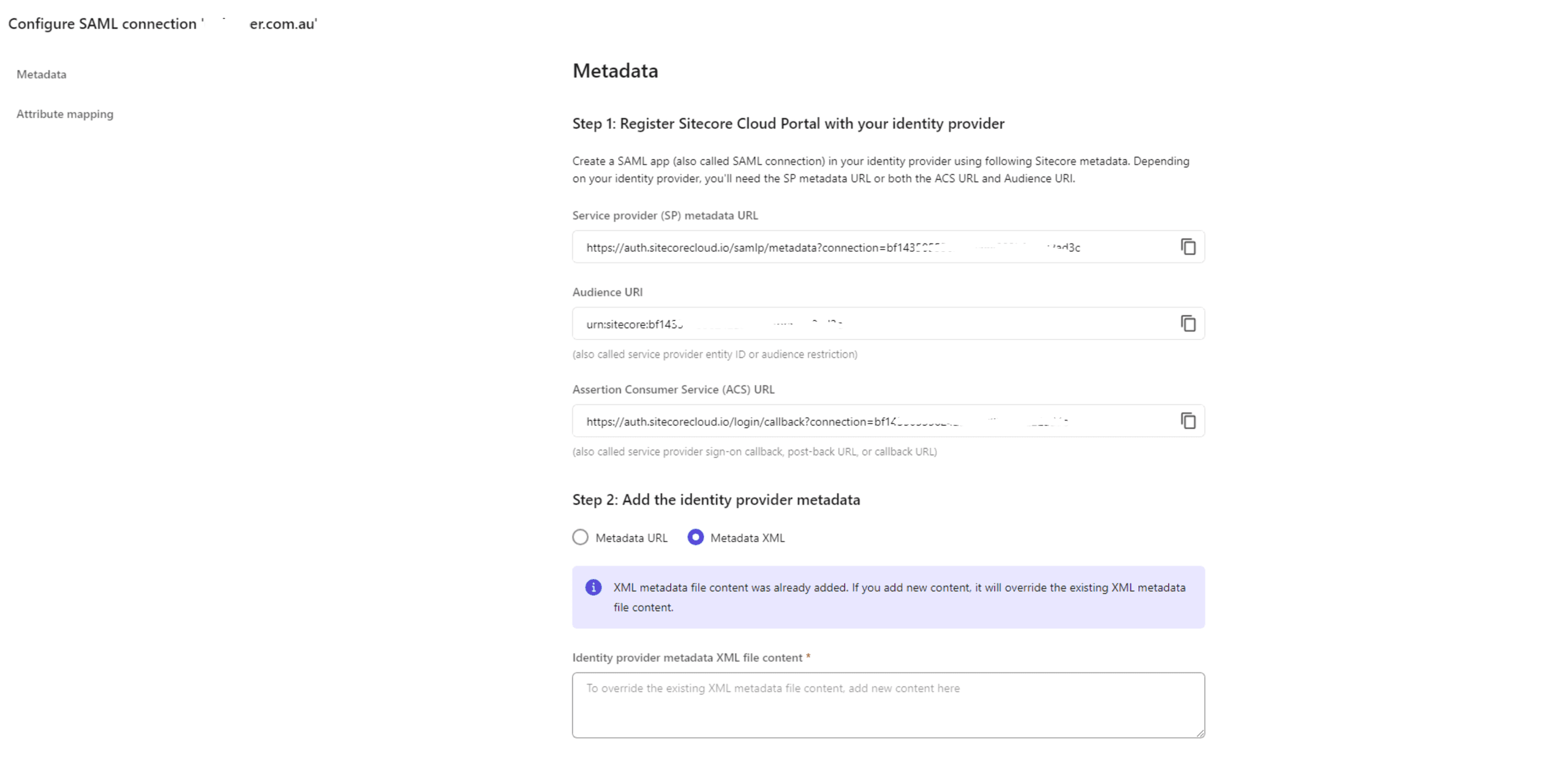

You'll be prompted for the the email domain you want to use. Fill that in and you'll be presented with the configuration field shown below:

Provide the values displayed in the connection window to the Identity Provider (we're using Azure AD)

The Identity Provider will have the Metadata XML or URL value you can paste into the field that calls for it.

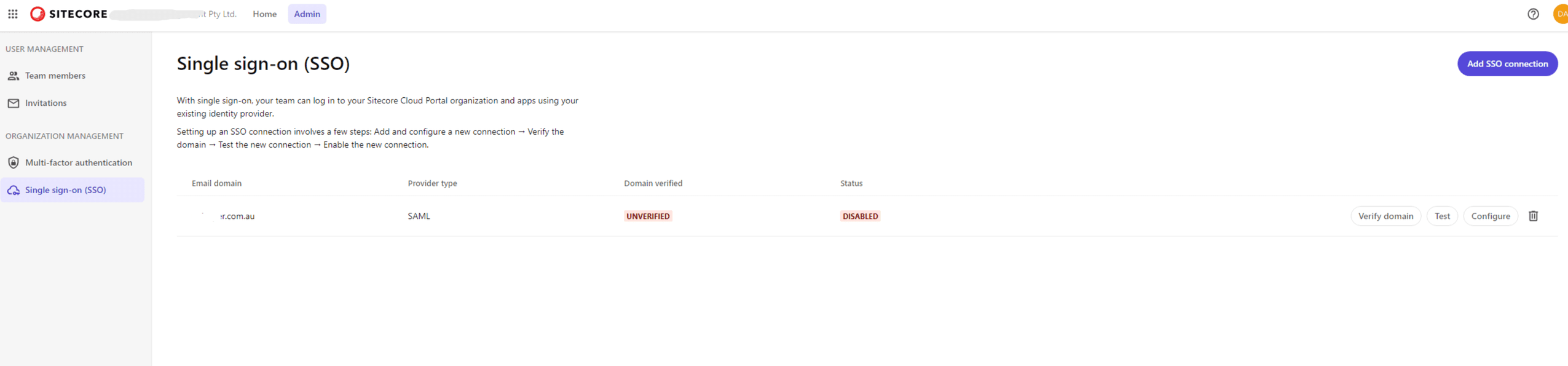

Submit that and you should be presented with the following unverified line item:

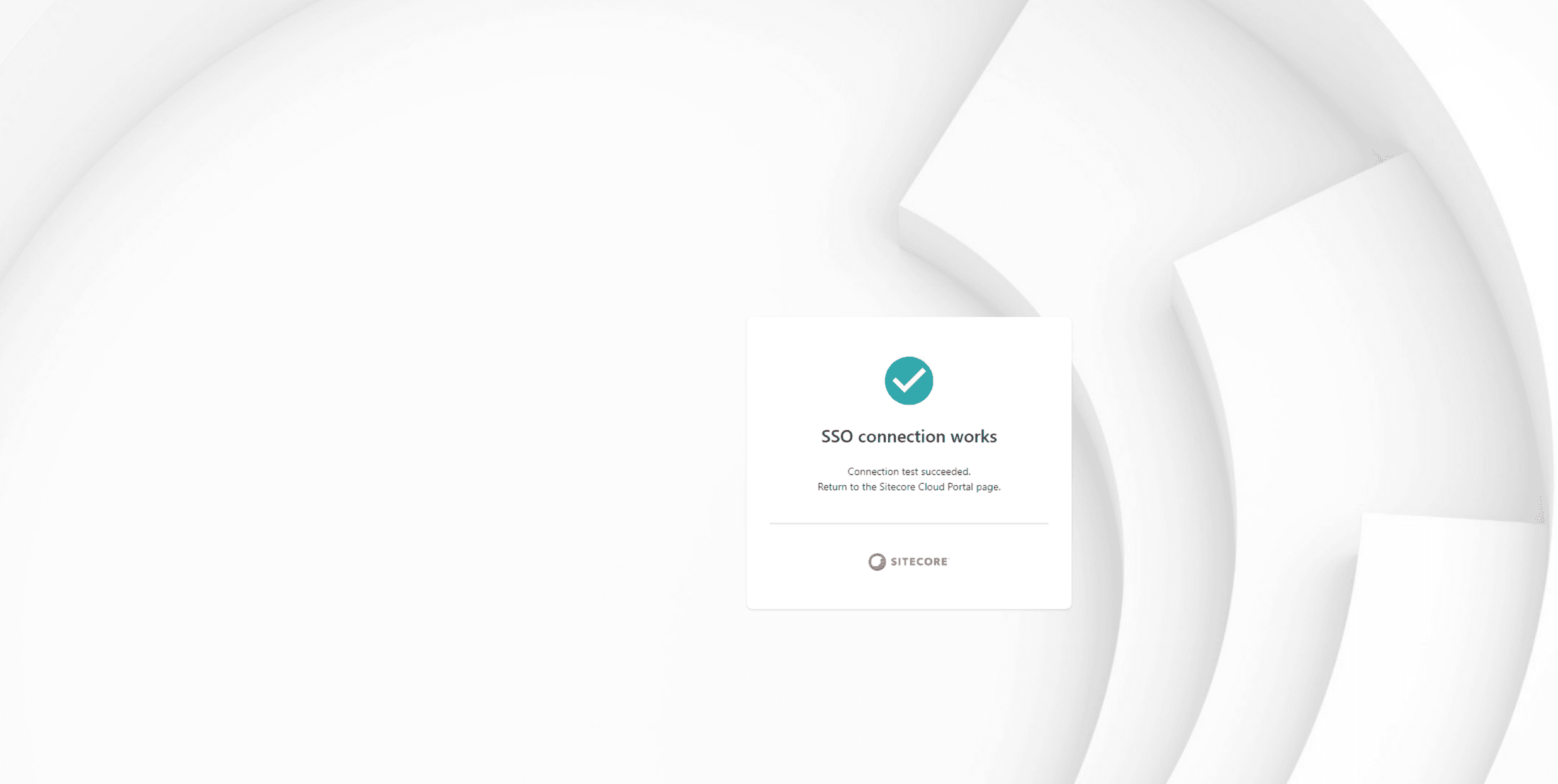

You can run the Test option to confirm the SAML configuration is correct and in place:

To enable the SSO connection, you will need to verify the domain ownership first. You do this by selecting the "Verify domain" option and following the details. You need to add a text record with the value provided do your domain to verify ownership.

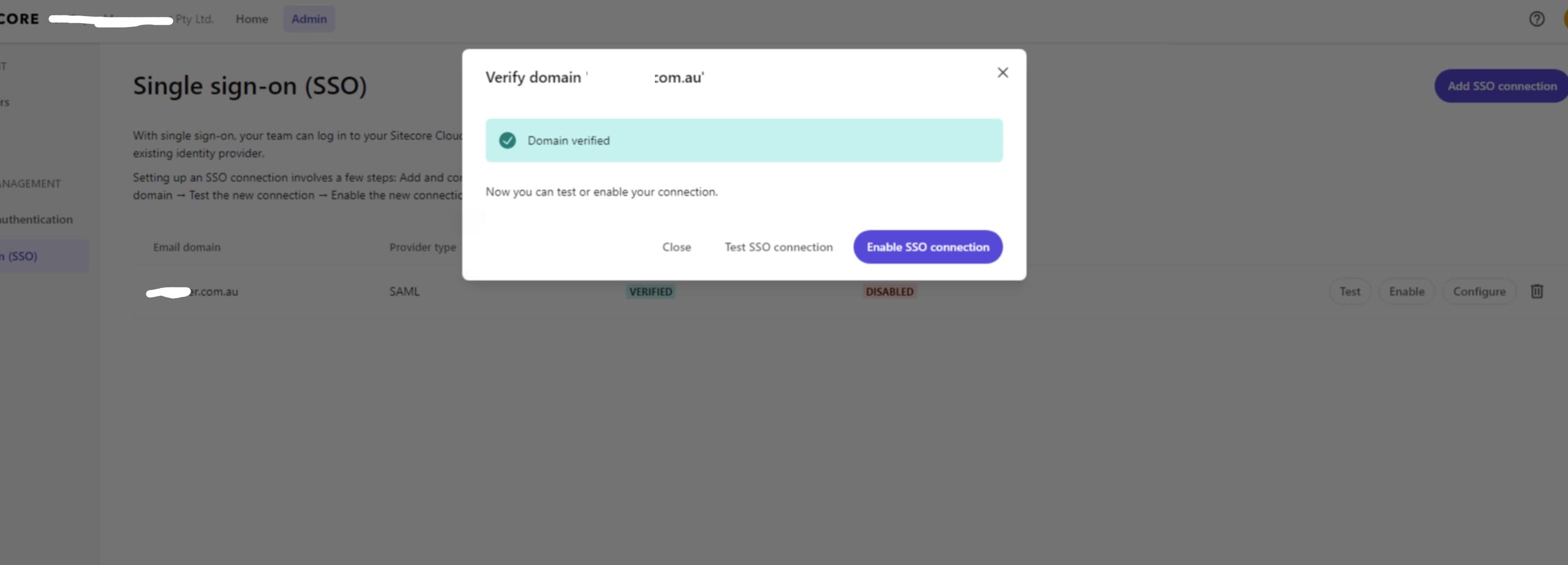

Once that has been added, you can click vefify domain and a popup will appear which you can then click “verify”

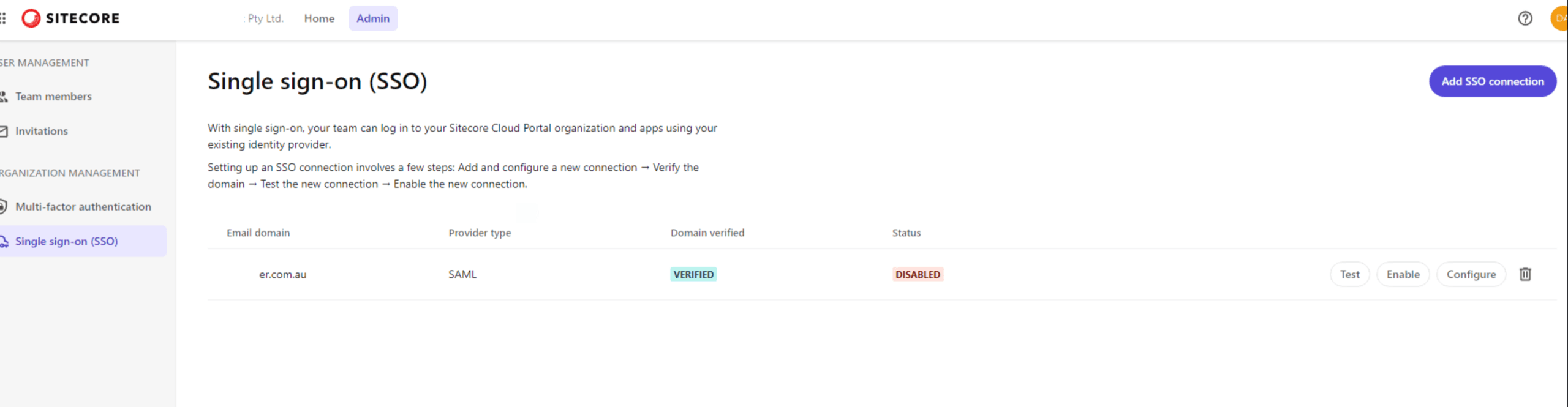

If successful, you will see this:

You can then Enable the SSO by clicking Enable - this will take a few minutes.

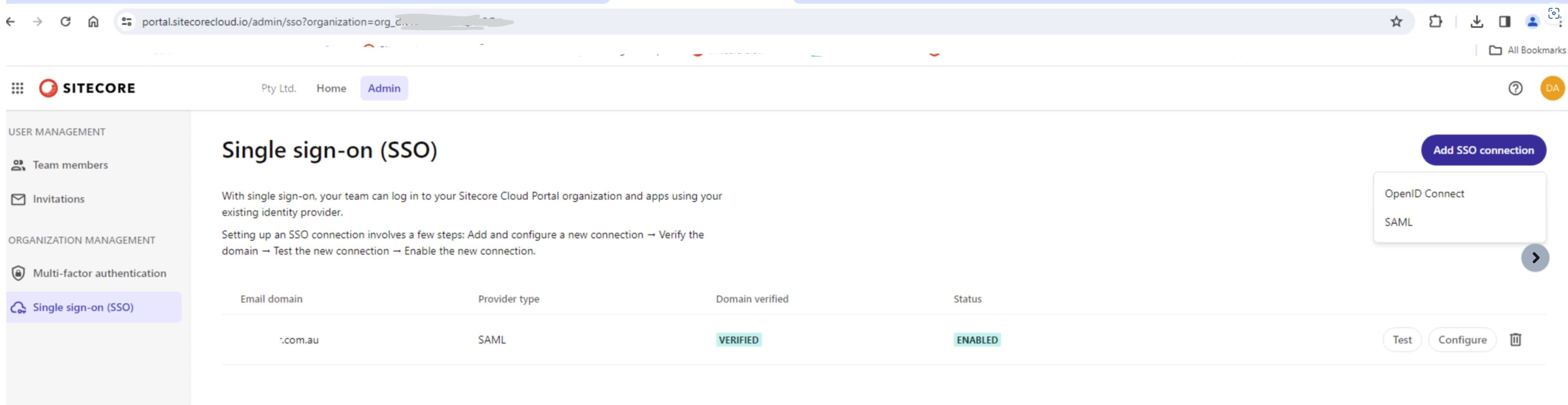

If all goes well, you should green lights across the board...

To test, ensure you have a user who has been added to the relevant AD Group and then in the cloud portal, send them an invite and set their portal access rights:

The will receieve an invitation email and can ‘accept’ the invite and SSO should be in place. If the user is not authenticated with their AD Creds, they will be prompted when they supply their domain email and if they are logged in, just be presented with an account choice:

You will likely see an agreement with licensing and T's and C's which you need to accept if you're a first time user.

That's it.. You should now have access with SSO!
